Steel wire mesh reinforced polyethylene composite pipe
Product Features: This product conforms to the CJ/T 189-2007 industry standard, with specifications ranging from DN50 to DN630 and nominal pressure from 0.8 to 3.5 MPa. It is a composite molding process using steel wire mesh as the reinforcing skeleton and HDPE as the matrix, combining the strength of steel pipes with the corrosion resistance of plastic pipes. It can transport water, gas, and corrosive media, and is suitable for various scenarios including municipal, mining, and industrial applications.
Execution Standard: CJ/T 189-2007 "Steel Wire Mesh Reinforced Plastic (Polyethylene) Composite Pipes and Fittings" (Industry Standard)
Specifications and Models Coverage: DN50-DN630

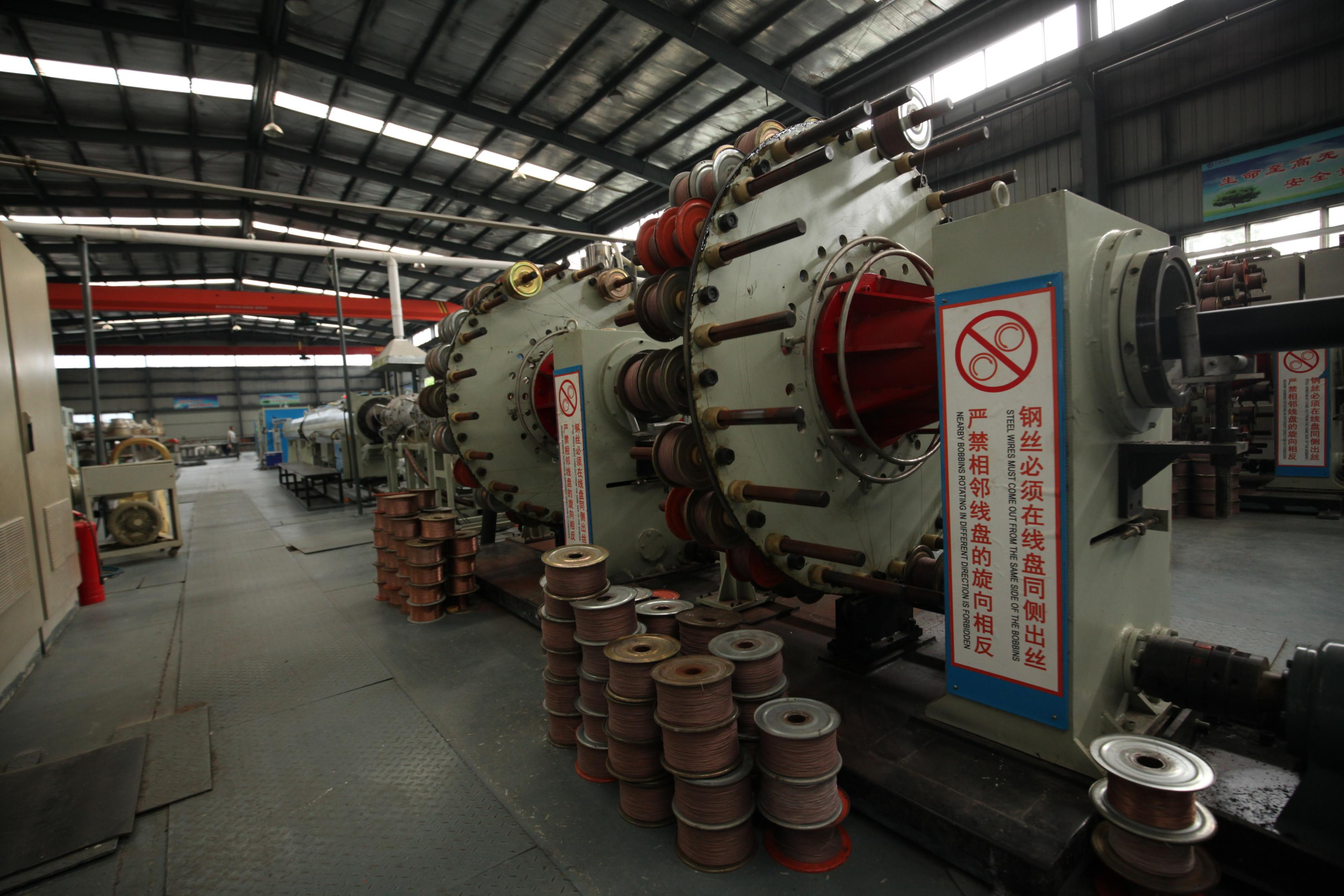

Product Introduction: The workshop is equipped with 10 Sichuan Jinshi Dongfang steel wire mesh reinforced polyethylene composite pipe production lines. Steel wire mesh reinforced polyethylene composite pipe (SRTP pipe) uses a high-strength steel wire spirally wound into a mesh skeleton as reinforcement, high-density polyethylene (HDPE) as the matrix, and high-performance adhesive resin to bond the steel wire mesh skeleton to the inner and outer layers of high-density polyethylene.
A new type of composite pipe product that combines the advantages of steel and plastic pipes by bonding them together. Conveying media: water, gas, corrosive liquids, corrosive slurries. Specification range: DN50-DN630mm. Nominal pressure: 0.8-3.5MPa. Product structure: [Image of product structure] Product applications: 1. Municipal engineering: urban building water supply, drinking water, fire water, drainage, buried water supply and drainage for highways, etc. 2. [Image of product structure]1. Water conveyance projects: water conveyance in industrial parks, integrated urban and rural water supply, mountain water supply, irrigation water, etc.3. Coal mines: coal mine water supply and drainage, ventilation pipelines, metallurgical mine water supply and drainage, slurry and tailings transportation, etc.
4. Industrial engineering: seawater transportation, brine transportation, industrial water, return water, corrosive gas, liquid, and solid powder transportation, etc.

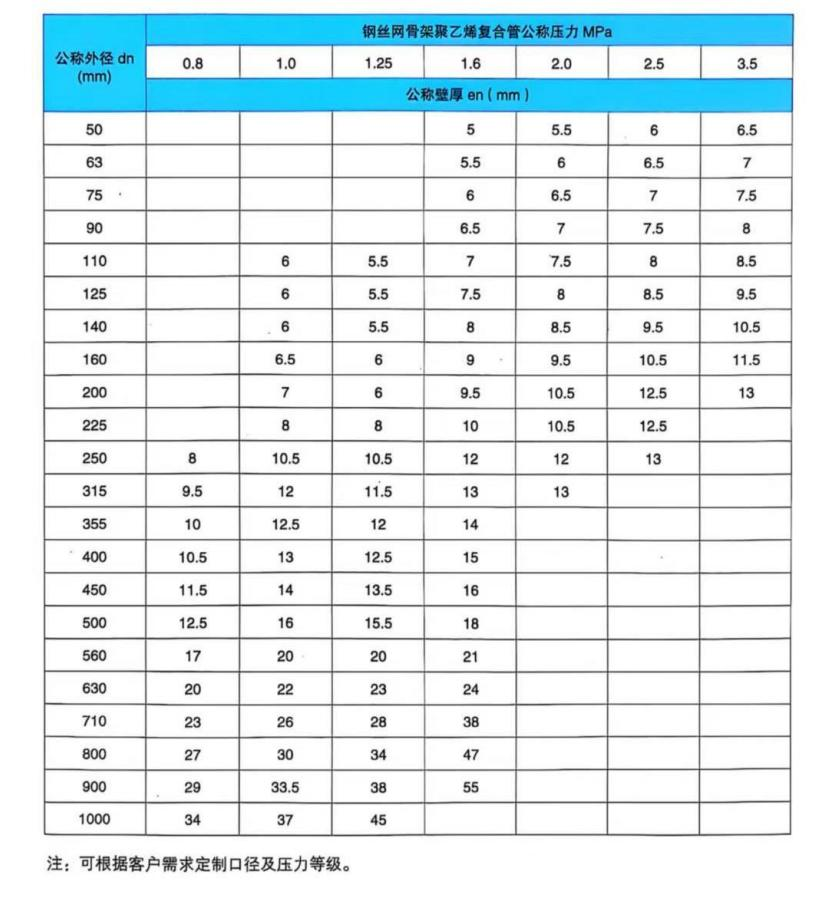

Product nominal pressure and specifications:
