Polyethylene cable conduit
Product Features: This product conforms to the DL/T 802.7-2023 power industry standard, with specifications ranging from DN70 to 250, and non-standard customization is supported. Made from modified polyethylene, construction requires minimal road excavation, making it suitable for laying in complex locations such as roads, railways, and riverbeds. It offers excellent protection and high construction efficiency, making it an ideal conduit for the safe laying of power cables.
Applicable Standard: DL/T 802.7-2023 — *Technical Specifications for Conduits for Power Cables*
Specification Range: DN70–250 (Non-standard pipe sizes can be manufactured upon customer request)
Product Introduction: PE power cable conduits (also referred to as PE power cable protection pipes or PE cable protection pipes) utilize modified polyethylene as their primary raw material.
These conduits are designed for construction projects involving the laying of pipes, cables, and similar infrastructure in challenging environments—such as beneath roads, railways, buildings, or riverbeds—without the need for extensive dredging, excavation, or disruption to road surfaces.

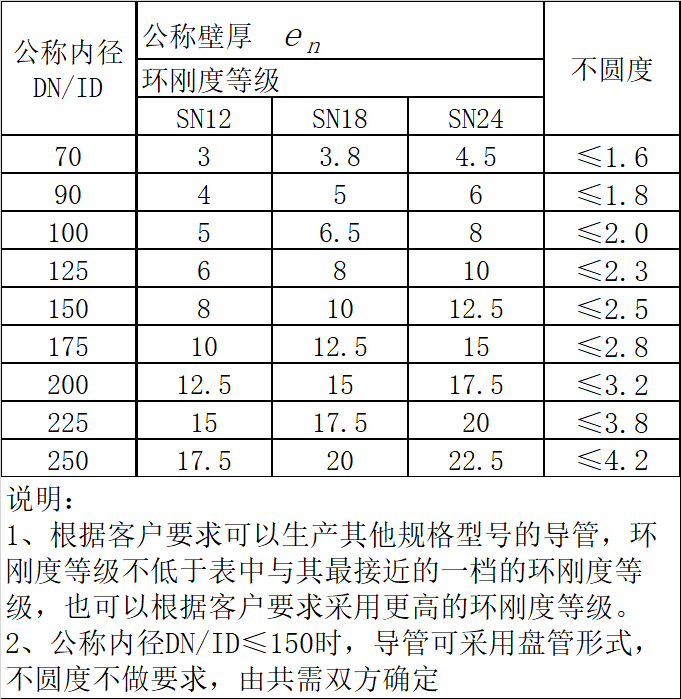

HDPE cable conduit specifications and dimensions table:
